Question

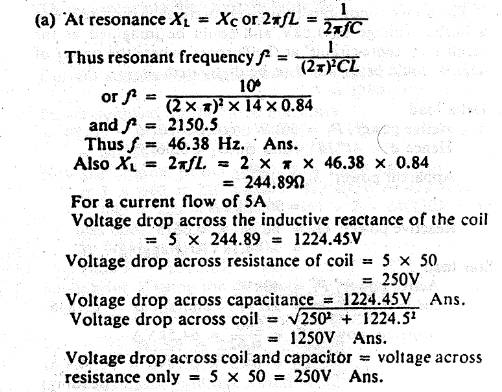

A coil of 0:84H
inductance,and50Ω
resistance: is connected in series with a capacitor of 14μ F capacitances " find the
frequency for resonance
and the potential differences across the capacitor,
across the coil and across the two, when a current of 5A at this frequency, is

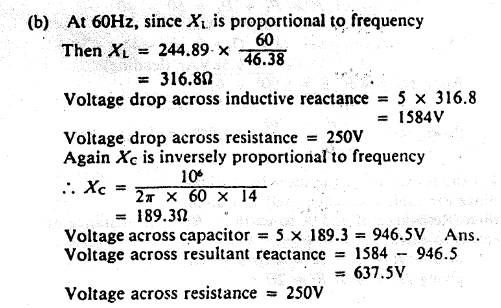

flowing. (b) find the three potential differences when
the same current flows at 60Hz.
