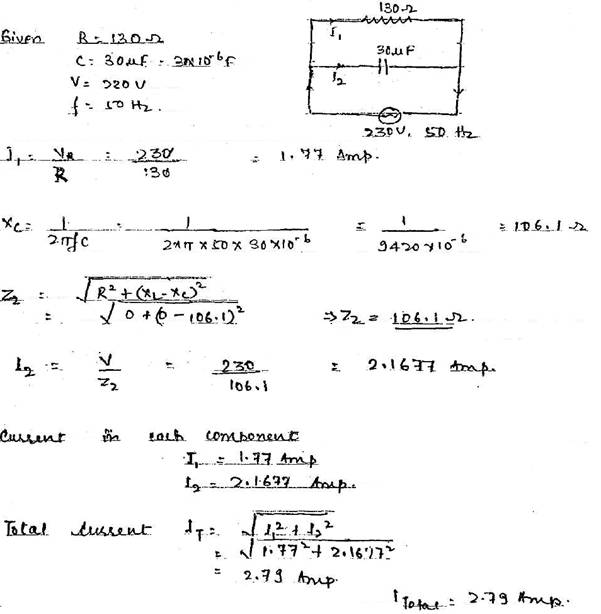

Question
A resistance of 130ohm. and a
capacitor of 30 μf are connected in parallel
across a 230 volt 50Hz supply.

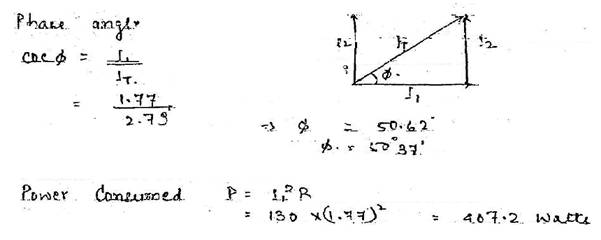

Find the current in each component, total current, phase
angle and the power consumed.
