Question
A

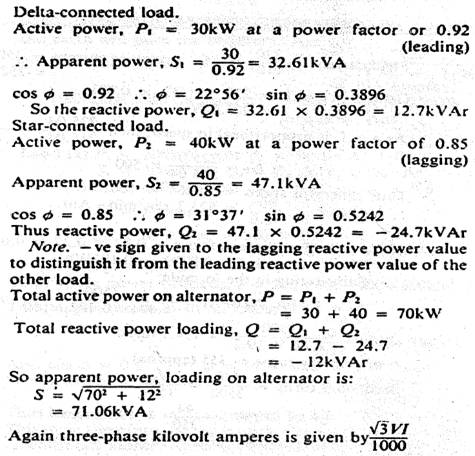

500V, three-phase alternator supplies a balanced delta-connected load iu parallel with a balanced
star-connected load. The delta load is 30kW at a power factor of 0.92 (leading)
and the star load is 40k\V at a power factor of 0.S5 (lagging). Calculate the

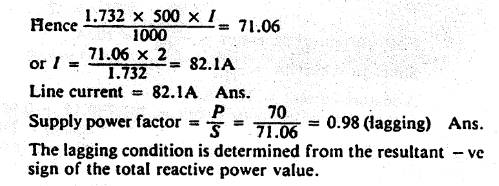

line current and the power factor of the supply.
