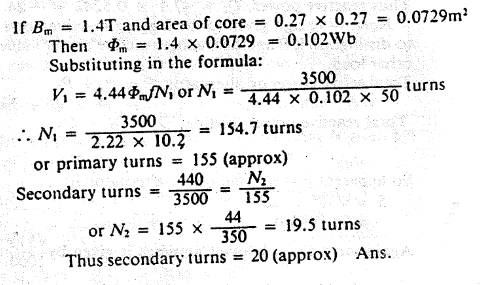

Question
A single-phase, 50Hz transformer, has a core with a square cross-section, each
side being 270mm.
The " transformation ratio is 3500/440V,
and the maximum flux density in the core is not to exceed 1.4T. Find the number
of turns of the windings required if the frequency is 50Hz.
