Question

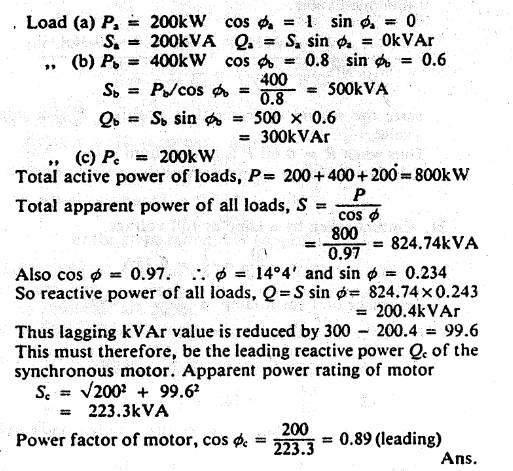

If
an alternator supplies' the following loads: (a) 200k W lighting load at unity
power factor, (b) 400kW induction-motor load at 0.8 (lagging), power factor,
(c) 200kW synchronous-motor load, find the power factor of the synchronous-motor load, to give
an overall power factor of 0.97 (lagging).
