Question
A 550kVA, 50Hz,
single-phase transformer has 1875 and 75 turns in the primary and secondary

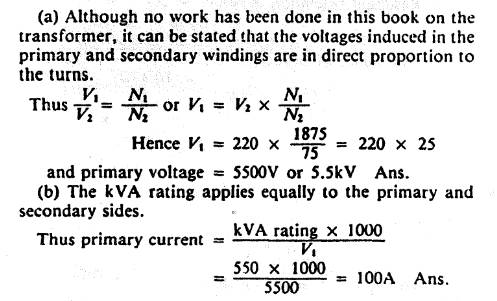

windings respectively. If the secondary voltage is 220V, calculate (a) primary

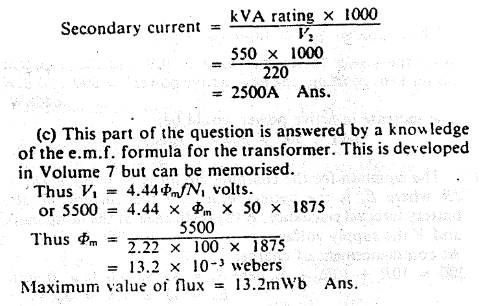

voltage, (b) primary and secondary currents, (c) maximum
value of flux.
