Question

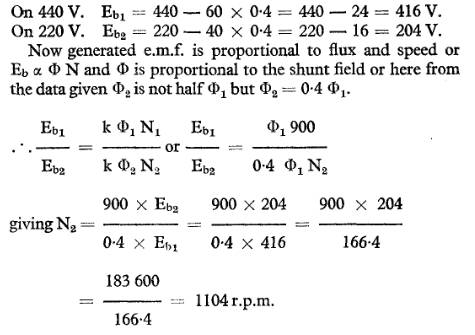

A shunt motor runs at 900 rev/min when connected to a 440 V supply the
armature current being 60 A and armature resistance,0.4
ohm. At what speed will it run on a 220 V supply with as current of 40A. Assume
60 percent reduction in flux for the 220 V connection.
