RAPSON SLIDE MECHANISM :

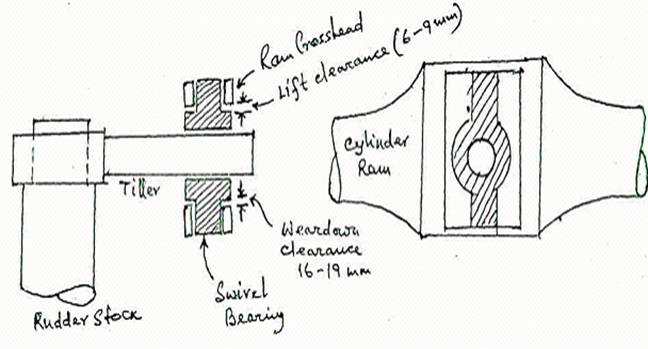

This mechanism converts the reciprocating motion of the rams into rotary motion of the Rudder Stock. The swirel bearing also includes clearances to accommodate vertical movement of the rudder and prevent forces and bending moments being transmitted to the steering gear.
